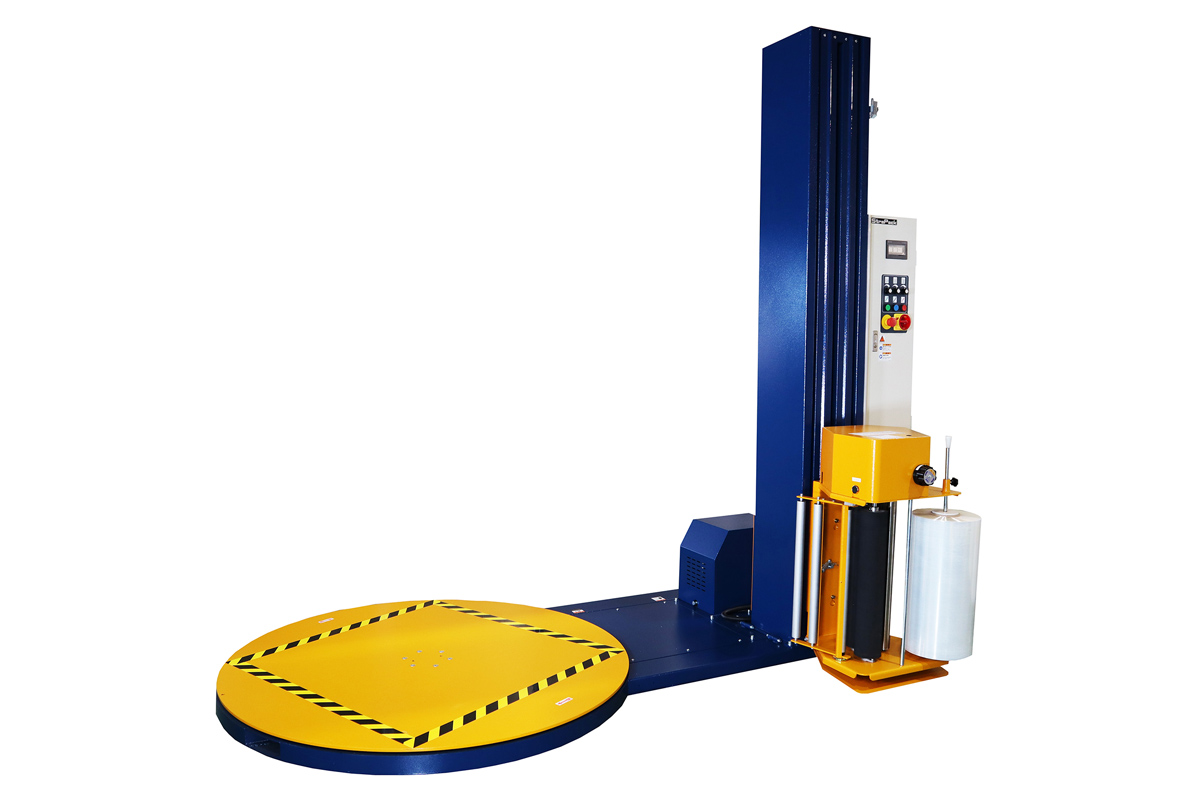

Stretch Film Pallet Stretch Wrapping Machine
Stretch film packaging can be performed quickly, safely, and reliably with a pallet stretch wrapping machine.
Features of Pallet Stretch Wrapping Machine
- By utilizing the speed difference between rollers, the stretch film can be extended up to four times, reducing material running costs. Reduces material running costs through the pre-stretch function.
- A robust structure designed with durability as the top priority.
- Ultra-low-profile design for easy pallet loading.
- The film lifting speed and turntable rotation speed are adjustable.
- A model for large pallets with a table size of Ø1,800 mm (PW-1821A) is also available.
Product Specifications of Pallet Stretch Wrapping Machine
※Swipe to view the table.| Model | PW-1521Ri | |
|---|---|---|
| Table Size | Ø1,500mm | |
| Maximum Wrapping Height | 2,100mm(Including Pallet) | |
| Maximum Load Weight | Max. 2,000 kg | |
| Turntable Speed | 5～15RPM | |
| Carriage Speed | Max. 2–5 m/min | |
| Tension Mechanism | Pre-Stretch Type | |
| Applicable Film | Core Inner Diameter | 76mm |
| Maximum Outer Diameter | 280 mm or less | |
| Width | 500mm | |
| Film Thickness | Recommended: 17–25 μ or more | |
| Power Supply | 3-Phase 200 V, 50/60 Hz, 1.6 kW | |
・Ramp
・Top Press Plate
- For other specifications, please contact us for consultation.
- Machine dimensions do not include the loaded stretch film.

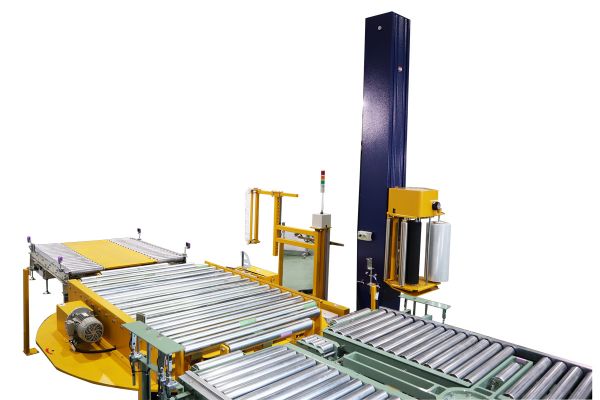

Fully Automatic Pallet Stretch Wrapping Machine: Fully Automatic Type (PW-1223ARD)
- By utilizing the speed difference between rollers, the stretch film can be extended up to four times, reducing material running costs (pre-stretch function).
- The conveyor is sold separately.
- When wrapping above the product height, the film height varies depending on the carriage speed.
- A fully automatic model that can be integrated into a system line. Custom specifications are available to meet a wide range of needs.
[Contact for inquiries regarding Pallet Stretch Wrapping Machine]
Dainichi Can Co., Ltd. – Plastics Division
TEL. +81-3-3251-5214
