PRODUCT

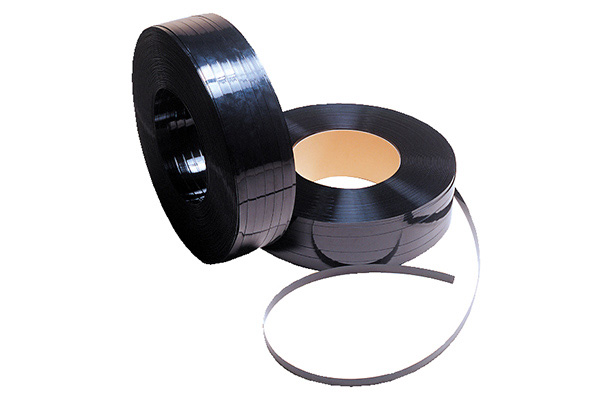

Strapping Band DIC Ester Band Metal Seal Type

A high-durability strapping band made from polyester resin.

[Applications]
Pallet packaging / Liner packaging / Paperboard packaging / Lumber packaging / Sash packaging / Refractory brick packaging / Export packaging / Reinforced cardboard packaging / Others

Features of DIC Ester Band Metal Seal Type

  • Offers excellent safety and workability.
  • Low elongation provides excellent tension retention, preventing loosening and load collapse.
  • Does not damage products even when applied directly.
  • Lightweight (approximately one-sixth the weight of steel strapping) and convenient to carry.
  • Helps reduce costs.
  • Excellent resistance to weather, chemicals, impact, and water, with minimal effect from temperature changes.

Product Specifications of DIC Ester Band Metal Seal Type

No. Type for Metal Seal Fastening

※Swipe to view the table.
Product Name Width (mm) Length (m) Tensile Strength (N/kgf) Elongation (%) Inner Diameter (Ø) Packaging (rolls)
No.250 15.8 1400 2450/250 15 200 2
No.255 15.8 1100 3140/320 15 200 2
No.256 15.8 900 3720/380 15 200 2
No.300 18.8 1100 2940/300 15 200 2
No.305 18.8 900 3720/380 15 200 2
No.306 18.8 700 4410/450 15 200 2

SV Type for Metal Seal Fastening (24% Recycled PET Used)

※Swipe to view the table.
Product Name Width (mm) Length (m) Tensile Strength (N/kgf) Elongation (%) Inner Diameter (Ø) Packaging (rolls)
SV164 15.8 1400 2450/250 15 200 2
SV165 15.8 1100 3140/320 15 200 2
SV166 15.8 900 3720/380 15 200 2
SV194 18.8 1100 2940/300 15 200 2
SV195 18.8 900 3720/380 15 200 2
SV196 18.8 700 4410/450 15 200 2

[Strapping Equipment] Tensioners, Case Sealers, and Metal Seals

[Contact for inquiries regarding DIC Ester Band Metal Seal Type]

Dainichi Can Co., Ltd. – Plastics Division
TEL. +81-3-3251-5214
